jQuery EasyUI Data Grid and Tree Plugin -Treegrid

jQuery EasyUI 插件jQuery EasyUI Plugin

Extends from $.fn.datagrid.defaults. Override the default defaults via $.fn.treegrid.defaults.

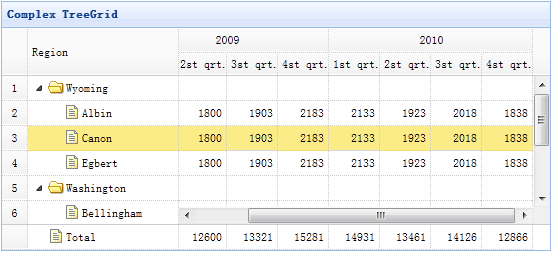

The treegrid is used to display hierarchical data in grid format. It is based on the datagrid and combines the treeview and the editable grid. The treegrid allows you to create customizable, asynchronously expandable rows and display hierarchical data in multiple columns.

Dependencies

  • datagrid

Usage

Create a treegrid from HTML markup. In most cases, the treegrid follows the same structure and format as the datagrid.

<table id="tt" class="easyui-treegrid" style="width:600px;height:400px"
    data-options="url:'get_data.php',idField:'id',treeField:'name'">
    <thead>
        <tr>
            <th data-options="field:'name',width:180">Task Name</th>
            <th data-options="field:'persons',width:60,align:'right'">Persons</th>
            <th data-options="field:'begin',width:80">Begin Date</th>
            <th data-options="field:'end',width:80">End Date</th>
        </tr>
    </thead>
</table>

Create a treegrid using JavaScript.

<table id="tt" style="width:600px;height:400px"></table>

$('#tt').treegrid({
    url:'get_data.php',
    idField:'id',
    treeField:'name',
    columns:[[
        {title:'Task Name',field:'name',width:180},
        {field:'persons',title:'Persons',width:60,align:'right'},
        {field:'begin',title:'Begin Date',width:80},
        {field:'end',title:'End Date',width:80}
    ]]
});

Properties

The properties extend from the datagrid. The following are the properties added for the treegrid.

Name Type Description Default Value
idField string Defines the key name field that identifies the tree node. Required. null
treeField string Defines the field of the tree node. Required. null
animate boolean Defines whether to show an animation effect when the node expands or collapses. false
loader function(param,success,error) Defines how to load data from a remote server. Return false to cancel the action. This function has the following parameters:
param: The parameter object to be passed to the remote server.
success(data): The callback function called when the data is retrieved successfully.
error(): The callback function called when the data retrieval fails.
 json loader
loadFilter function(data,parentId) Returns the filtered data to be displayed.

Events

The events extend from the datagrid. The following are the events added for the treegrid.

Name Parameters Description
onClickRow row Triggered when the user clicks a node.
onDblClickRow row Triggered when the user double-clicks a node.
onClickCell field,row Triggered when the user clicks a cell.
onDblClickCell field,row Triggered when the user double-clicks a cell.
onBeforeLoad row, param Triggered before a request to load data is sent. Return false to cancel the loading action.
onLoadSuccess row, data Triggered when data is loaded successfully.
onLoadError arguments Triggered when data loading fails. The arguments parameter is the same as the 'error' method of jQuery.ajax.
onBeforeExpand row Triggered before a node expands. Return false to cancel the expansion action.
onExpand row Triggered when a node is expanded.
onBeforeCollapse row Triggered before a node collapses. Return false to cancel the collapse action.
onCollapse row Triggered when a node is collapsed.
onContextMenu e, row Triggered when a node is right-clicked.
onBeforeEdit row Triggered when the user starts editing a node.
onAfterEdit row,changes Triggered when the user finishes editing.
onCancelEdit row Triggered when the user cancels editing a node.

Methods

Many methods require a parameter named 'id', which represents the value of the tree node.

Name Parameters Description
options none Returns the options of the treegrid.
resize options Sets the size of the treegrid. The options parameter contains two properties:
width: The new width of the treegrid.
height: The new height of the treegrid.
fixRowHeight id Fixes the height of the specified row.
loadData data Loads the data of the treegrid.
load param Loads and displays the first page. This method is available since version 1.3.4.
Code example:
// load and send some request parameters
$('#tg').treegrid('load', {
    q: 'abc',
    name: 'name1'
});
reload id Reloads the data of the treegrid. If the 'id' parameter is passed, it reloads the specified row of the tree; otherwise, it reloads all rows of the tree.
Code example:
$('#tt').treegrid('reload', 2);    // reload the row which value is equals to 2
$('#tt').treegrid('reload');    // reload the all rows
$('#tt').treegrid('reload', {id:2, q:'abc'});  // reload the specified row with 'q' parameter passing to server
reloadFooter footer Reloads the footer data.
getData none Gets the loaded data.
getFooterRows none Gets the footer data.
getRoot none Gets the root node and returns the node object.
getRoots none Gets the root nodes and returns an array of nodes.
getParent id Gets the parent node.
getChildren id Gets the child nodes.
getSelected none Gets the selected node and returns it. Returns null if no node is selected.
getSelections none Gets all selected nodes.
getLevel id Gets the level of the specified node.
find id Finds the specified node and returns the node data.
select id Selects a node.
unselect id Deselects a node.
selectAll none Selects all nodes.
unselectAll none Deselects all nodes.
collapse id Collapses a node.
expand id Expands a node.
collapseAll id Collapses all nodes.
expandAll id Expands all nodes.
expandTo id Expands a specified node from the root.
toggle id Toggles the expanded/collapsed state of a node.
append param Appends some child nodes to a parent node. The 'param' parameter includes the following properties:
parent: The id of the parent node. If not assigned, it is appended as a root node.
data: An array of node data.

Code example:
// append some nodes to the selected row
var node = $('#tt').treegrid('getSelected');
$('#tt').treegrid('append',{
    parent: node.id,  // the node has a 'id' value that defined through 'idField' property
    data: [{
        id: '073',
        name: 'name73'
    }]
});
insert param Inserts a node before or after the specified node. The 'param' parameter includes the following properties:
before: The id value of the node to insert before.
after: The id value of the node to insert after.
data: The new node data.

Code example:
// insert a new node before the selected node
var node = $('#tt').treegrid('getSelected');
if (node){
    $('#tt').treegrid('insert', {
        before: node.id,
        data: {
            id: 38,
            name: 'name38'
        }
    });
}
This method is available since version 1.3.1.
remove id Removes the node and its child nodes.
pop id Pops out a node and returns the node data including its child nodes after removing the node. This method is available since version 1.3.1.
refresh id Refreshes the specified node.
update param Updates the specified node. The 'param' parameter includes the following properties:
id: The id of the node to be updated.
row: The new row data.

Code example:
$('#tt').treegrid('update',{
    id: 2,
    row: {
        name: 'new name',
        iconCls: 'icon-save'
    }
});
This method is available since version 1.3.1.
beginEdit id Starts editing a node.
endEdit id Ends editing a node.
cancelEdit id Cancels editing a node.
getEditors id Gets the editor of the specified row. Each editor has the following properties:
actions: The actions the editor can perform.
target: The jQuery object of the target editor.
field: The field name.
type: The type of the editor.
getEditor param Gets the specified editor. The param parameter contains two properties:
id: The id of the row node.
field: The field name.
