GraphRAG Beginner Tutorial

GraphRAG is a structured, hierarchical retrieval-augmented generation (RAG) system open-sourced by Microsoft Research. Unlike traditional RAG, which uses pure text vector retrieval, GraphRAG first uses a large language model to extract entities and relationships from raw documents, constructs a knowledge graph, and then performs retrieval and question answering based on the graph structure.

This tutorial is designed for beginners with zero prior knowledge, guiding you through the complete workflow from installationdocument → knowledge graph → query Q&AThe model used isqwen-plus, and the Embedding uses Alibaba Cloud Tongyi'stext-embedding-v4。

What is GraphRAG

To understand GraphRAG, you first need to understand how it is better than traditional RAG.

Limitations of Traditional RAG

The workflow of traditional RAG (Baseline RAG) is: split documents into small chunks → generate vectors → when a question comes, use vector similarity to retrieve the most relevant chunks → feed them to the model to generate an answer.

This approach works well for "exact retrieval" type questions, but performs poorly in two scenarios:

• Cross-document relational reasoning: When the answer requires connecting information scattered across different documents, vector similarity cannot express this "relationship". For example, "What is the intersection between the CEO of Company A and the founder of Company B?"
• Global summary questions: When the question requires a macro-level summary of the entire corpus, a few text chunks cannot cover the whole picture. For example, "What are the most critical risk points in this batch of financial reports?"

How GraphRAG Solves These Two Problems

The core idea of GraphRAG is:Instead of directly retrieving text chunks, it first builds a knowledge graph and then retrieves based on the graph structure.。

The whole process is divided into two stages:

The indexing phase of GraphRAG requires calling a large number of LLM APIs, performing entity extraction and summarization on each text segment,Token consumption is far higher than traditional RAG. It is recommended that for first use, you first test the workflow with a small document (within a few thousand characters), and only process large-scale corpora after confirming it works correctly.

Comparison of Four Query Modes

Environment Requirements

Before you begin, make sure your environment meets the following requirements.

Installation

GraphRAG is published on PyPI. It is recommended to install it in a Python virtual environment to avoid polluting the system environment.

Create a project directory and initialize a virtual environment

mkdir graphrag_demo
cd graphrag_demo
python -m venv .venv

You can also usethe uv commandto specify a Python version:

uv venv --python 3.12

Activate the virtual environment

macOS / Linux：

source .venv/bin/activate

Windows：

.venv\Scripts\activate

Install GraphRAG

pip install graphrag

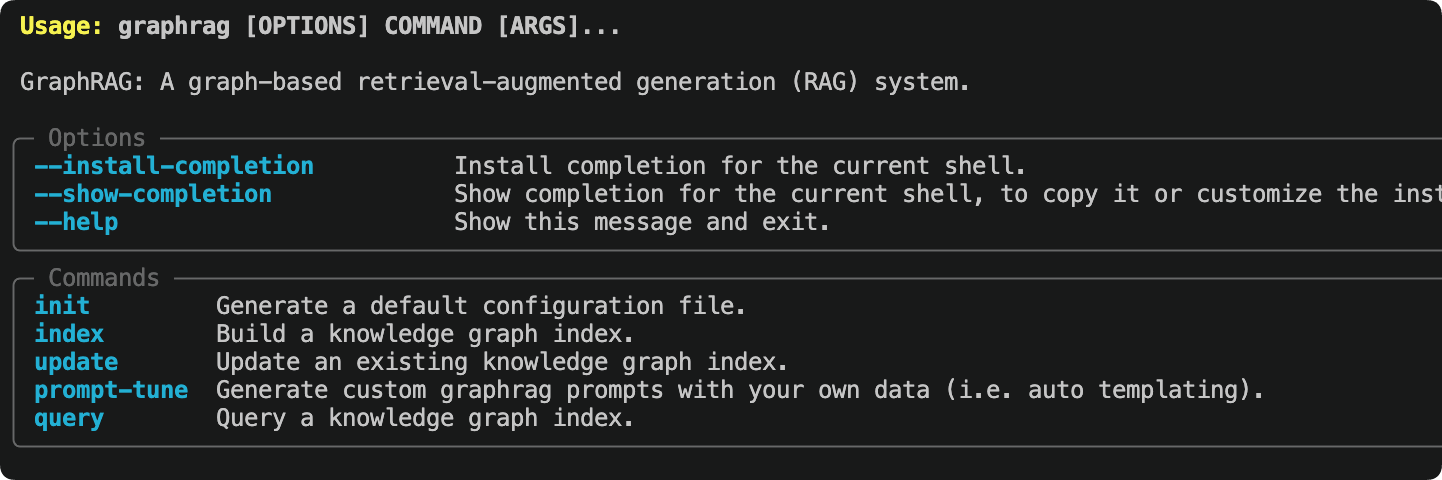

After installation completes, verify:

graphrag --help

It will output somegraphragcommand information. The output will look similar to:

GraphRAG will automatically install dependencies such as LiteLLM, LanceDB, pandas, and numpy. The first installation may take a while (usually 1-3 minutes). Please be patient.

Initialize the workspace

Rungraphrag initcommand, GraphRAG will generate configuration files and the directory structure in the current directory.

graphrag init

It will prompt us to set the models. Just press Enter to accept the defaults; we can modify them later:

Specify the default chat model to use [gpt-4.1]:
Specify the default embedding model to use [text-embedding-3-large]:

During initialization, you will be prompted to enter the default Chat model and Embedding model. You can simply press Enter to skip for now; we will modify them manually later.settings.yaml。

After initialization is complete, the directory structure is as follows:

graphrag_demo/
├── .env                  # 存放 API Key 环境变量
├── settings.yaml         # 核心配置文件
├── input/                # 存放待处理的文本文件
├── output/               # 索引产物输出目录（自动生成）
└── prompts/              # Prompt 模板目录（自动生成）

After each minor version upgrade of GraphRAG, it is recommended to rerungraphrag init --forceto refresh the configuration format; otherwise, errors may occur due to configuration structure changes. Note that this command will overwrite existingsettings.yamland prompts. It is recommended to back them up first.

Prepare test documents

GraphRAG supports.txt、.csv、.jsondocuments in the ... format. All files to be processed should be placed in theinput/directory.

We use the officially recommended test document—Charles Dickens' "A Christmas Carol"—downloaded directly from Project Gutenberg:

curl https://static.jyshare.com/download/pg24022.txt -o ./input/book.txt

If there is no network access, you can also create a Chinese test text yourself. The richer the content (including many characters, places, and event relationships), the more obvious GraphRAG's knowledge graph effect will be:

Place the file in theinputdirectory, with the filenamedemo.txt：

SpaceX 太空探索技术公司成立于 2002 年，由埃隆·马斯克（Elon Musk）在美国加利福尼亚州霍桑市创办。
公司目标是大幅降低太空运输成本，最终实现人类移民火星。

马斯克早年联合创立了 PayPal，2002 年以 15 亿美元出售给 eBay，随后将个人资产投入 SpaceX。
联合创始人中，汤姆·穆勒（Tom Mueller）担任推进系统首席设计师，主导了 Merlin 和 Raptor 发动机的研发。
格温·肖特维尔（Gwynne Shotwell）于 2002 年加入，2008 年起担任总裁兼 COO，负责公司日常运营和商业拓展。

2008 年，猎鹰 1 号（Falcon 1）在经历三次失败后首次成功入轨，成为首个由私营公司研制的液体轨道火箭。
2010 年，猎鹰 9 号（Falcon 9）首飞成功，同年龙飞船（Dragon）完成首次商业发射与回收。
2012 年，龙飞船成为首个对接国际空间站的商业航天器。

2015 年 12 月，猎鹰 9 号一级火箭首次实现陆地垂直回收，开创了火箭重复使用的新纪元。
此后 SpaceX 累计完成超过 200 次火箭回收，单枚助推器最高复用次数达到 20 次以上。

2020 年，载人龙飞船（Crew Dragon）将 NASA 宇航员送入国际空间站，标志着商业载人航天时代的开始。
Starlink 星链项目自 2019 年启动，截至 2024 年已在轨部署超过 5000 颗卫星，覆盖全球超过 60 个国家和地区。

Starship 星舰是 SpaceX 正在研发的超重型运载系统，由超重助推器（Super Heavy）和星舰飞船组成，
设计目标为完全可重复使用，近地轨道运力超过 100 吨，是 NASA 阿尔忒弥斯登月计划的指定着陆器。

竞争对手方面，SpaceX 主要面临来自蓝色起源（Blue Origin）和联合发射联盟（ULA）的压力。
蓝色起源由亚马逊创始人杰夫·贝索斯创立，专注亚轨道旅游和重型火箭 New Glenn 的研发。
ULA 由洛克希德·马丁和波音合资成立，长期承担美国军方卫星发射任务。

Configure qwen-plus and the Embedding model

This is the most critical step of the entire tutorial; you need to modify.envandsettings.yamltwo files.

Step 1: Configure the API Key

Open.envfile, and fill in your API Key:

Step 2: Modify settings.yaml

Opensettings.yaml, and replace the entire content with the following configuration.

GraphRAG 2.x uses LiteLLM to uniformly call various models,model_provider: openaiTogether withapi_baseyou can forward requests to any OpenAI-compatible interface:

completion_models:
  default_completion_model:
    model_provider: openai
    model: qwen-plus                              # 中文抽取稳定，成本低于 qwen-plus
    auth_method: api_key
    api_key: ${DASHSCOPE_API_KEY}
    api_base: https://dashscope.aliyuncs.com/compatible-mode/v1
    call_args:
      temperature: 0                              # 提高结构化稳定性
      max_tokens: 4096
    retry:
      type: exponential_backoff
      max_retries: 5
      base_delay: 2

embedding_models:
  default_embedding_model:
    model_provider: openai
    model: text-embedding-v4                      # 通义向量模型
    auth_method: api_key
    api_key: ${DASHSCOPE_API_KEY}
    api_base: https://dashscope.aliyuncs.com/compatible-mode/v1
    retry:
      type: exponential_backoff
      max_retries: 5

input:
  type: text

input_storage:
  type: file
  base_dir: input

chunking:
  type: tokens
  size: 600                                       # 中文推荐 500~800
  overlap: 100
  encoding_model: o200k_base

output_storage:
  type: file
  base_dir: output

reporting:
  type: file
  base_dir: logs

cache:
  type: json
  storage:
    type: file
    base_dir: cache

vector_store:
  type: lancedb
  db_uri: output/lancedb

embed_text:
  embedding_model_id: default_embedding_model    # 注意不要带逗号
  batch_size: 10                                 # 百炼 embedding 单次最多10条
  batch_max_tokens: 6000
  concurrency: 1                                 # 避免并发触发限流

extract_graph:
  completion_model_id: default_completion_model
  entity_types: []                               # 自动识别实体
  max_gleanings: 3                               # 提高关系补抽成功率

summarize_descriptions:
  completion_model_id: default_completion_model
  max_length: 500

cluster_graph:
  max_cluster_size: 20                           # 降低社区数量

extract_claims:
  enabled: false

community_reports:
  completion_model_id: default_completion_model
  max_length: 1500
  max_input_length: 4000                         # 防止生成阶段过慢

snapshots:
  graphml: true                                  # 导出图结构
  embeddings: false

local_search:
  completion_model_id: default_completion_model
  embedding_model_id: default_embedding_model
  top_k_entities: 10

global_search:
  completion_model_id: default_completion_model
  map_max_length: 500
  reduce_max_length: 1500

About Qwen's JSON output:GraphRAG requires the model to stably return JSON format during entity extraction. Qwen supports JSON mode; settemperatureto 0 can further improve output stability and reduce the probability of parsing failures. If JSON parsing errors still occur, you can trycall_argsadding toresponse_format: {type: json_object}。

Start indexing

After configuration is complete, run the indexing command. GraphRAG will automatically readinput/all files in the directory, call qwen-plus for entity extraction, relation recognition, and summary generation, and finally build a complete knowledge graph.

graphrag index

You will see progress output similar to the following:

⠹ GraphRAG Indexer
├── Loading Input (text) - 1 files loaded
├── create_base_text_units
├── extract_graph
│   └── Entity Extraction: 100%|████████████| 12/12 [02:34<00:00]
├── summarize_descriptions
├── cluster_graph
├── community_reports
└── generate_text_embeddings
All workflows completed successfully.

After indexing is complete,output/a series of Parquet files will be generated in the directory:

Indexing time reference:For a Chinese document of a few thousand characters (about 10–20 text chunks), using qwen-plus takes approximately 3–10 minutes; for large document sets over 100,000 characters, it may take several hours. It is recommended to first run through the workflow with a small document, then process large-scale data.

Run queries

After indexing is complete, you can query the knowledge graph. GraphRAG provides two methods: CLI and Python API.

CLI queries

Global search (suitable for macro-level questions):

graphrag query "文档中涉及的主要组织和人物有哪些？它们之间有什么关系？"

Local search (suitable for questions about specific entities), add--method local：

graphrag query "SpaceX 公司的主要业务和合作伙伴有哪些？" --method local

DRIFT Search (balancing depth and breadth):

graphrag query "埃隆·马斯克的职业背景和主要贡献是什么？" --method drift

Basic vector search (compared with traditional RAG):

graphrag query "Starship 星舰的设计目标和能力是什么？" --method basic

Python API queries

Call GraphRAG queries in code, suitable for integration into applications.

python query_demo.py

============================================================
【Global Search】全局性问题
============================================================
根据文档内容，主要涉及以下公司和人物关系网络：

**公司层面：**
- SpaceX 公司：主要角色，覆盖商业发射、载人航天、卫星互联网三大方向
- NASA：重要合作伙伴，阿尔忒弥斯登月计划 Starship 着陆器供应商
- 蓝色起源 / 联合发射联盟：主要竞争对手

**人物层面：**
- 马斯克（创始人）：PayPal 联合创始人，SpaceX CEO 兼首席工程师
- 汤姆·穆勒（联合创始人）：推进系统首席设计师，Merlin 和 Raptor 发动机之父
- 格温·肖特维尔：总裁兼 COO，负责公司商业运营

**关键关系：**
SpaceX 与 NASA 于 2020 年建立战略合作关系，
三家公司（SpaceX、蓝色起源、ULA）在商业航天发射市场形成竞争格局...

============================================================
【Local Search】针对特定实体的问题
============================================================
SpaceX 公司成立于 2002 年，创始团队包括：
- 马斯克：PayPal 联合创始人，SpaceX CEO 兼首席工程师，航天领域超二十年经验
- 汤姆·穆勒：推进系统首席设计师，主导 Merlin 和 Raptor 发动机研发

主要产品：
1. 猎鹰 9 号：全球首个实现垂直回收的轨道级火箭，已完成 200 次以上回收
2. Starship 星舰：超重型运载系统，近地轨道运力超 100 吨，完全可重复使用

检索到相关实体数量：12

Prompt auto-tuning

GraphRAG officially strongly recommends running automatic prompt tuning before processing your own data.

Automatic tuning will have the LLM read part of your documents and then generate entity extraction prompts customized for your data domain, resulting in higher-quality knowledge graph construction.

graphrag prompt-tune --config settings.yaml --root . --language Chinese

After tuning is complete,prompts/the Prompt files in the directory will be automatically updated. If your documents are in Chinese, add the--language Chineseparameter so that the generated Prompt also uses Chinese, improving Chinese entity extraction accuracy.

Prompt tuning itself also consumes LLM tokens (roughly equivalent to a quick indexing of a small number of documents). It is recommended to re-tune each time you change your dataset, rather than always using the default prompts.

Quick reference for common CLI commands

The following are the most commonly used commands in daily GraphRAG usage.

Complete settings.yaml field reference

Below, we providesettings.yamla detailed explanation of the most commonly used configuration items to facilitate further adjustments.

Model-related

Chunking-related

Entity extraction-related

FAQ

What if indexing fails midway?

GraphRAG caches the results of each LLM call. After a failure, simply rerungraphrag indexThe text chunks that have already been successfully processed will be read from the cache and will not consume tokens repeatedly.

If you want to restart from a specific step, use--resumethe parameter:

graphrag index --resume

How to handle JSON parse errors?

The entity extraction phase requires the model to strictly return JSON format. IfJSONDecodeError, you can try the following methods:

• Incall_argsaddresponse_format: {type: json_object}(requires the model to support this parameter)
• willtemperatureSet to 0
• willmax_gleaningsSet to 0 (reduce follow-up questions, lower error probability)
• Rungraphrag prompt-tuneRe-optimize the Prompt to make the model more familiar with the output format

How to choose between Global Search and Local Search?

How to control high token consumption?

• willchunking.sizeIncrease appropriately (fewer text chunks = fewer LLM calls)
• willextract_graph.max_gleaningsSet to 0 or 1
• Inentity_typeskeep only the entity types most relevant to the business
• Use a cheaper model during indexing, and switch to a more powerful model during query as needed

GraphRAG provides an "asymmetric model configuration" strategy: incompletion_modelsDefine multiple models in ..., use low-cost models during indexing, and use more capable models for critical queries during the query phase, finding a balance between cost and quality.

How to handle Chinese documents?

When handling Chinese documents, the following points need attention:

• Ensureinput.encoding: utf-8(UTF-8 by default already)
• Decreasechunking.size(Chinese characters have high information density; 600~1000 tokens suffice)
• Rungraphrag prompt-tune --language ChineseGenerate Chinese Prompt
• entity_typesYou can appropriately add Chinese-specific types, such asgovernment_agency(government agencies),policy(policies)
