PyCharm Interface Guide

PyCharm's default interface is mainly divided into the following areas:

  1. Top menu bar: File, Edit, View, Navigate, etc.

  2. Toolbar: Quick buttons for common operations

  3. Navigation bar: Simplified navigation showing the current file path

  4. Side tool windows: Various functional panels on the left and right sides

  5. Editor area: Central code editing area

  6. Status bar: Displays project status information at the bottom

II. Detailed Explanation of Main Functional Areas

1. Top Menu Bar (Chinese-English Comparison)

  • File: Project/file operations (New, Open, Settings, etc.)

  • Edit: Code editing operations (Copy, Find, Code Generation, etc.)

  • View: Interface display control (Tool Windows, Appearance, etc.)

  • Navigate: Code navigation related features

  • Code: Code refactoring and generation

  • Refactor: Code refactoring functions

  • Run: Execution and debugging

  • Tools: Integrated tools (Database, Terminal, etc.)

  • Version Control (VCS): Version control such as Git

  • Window: Window layout management

  • Help: Documentation and support

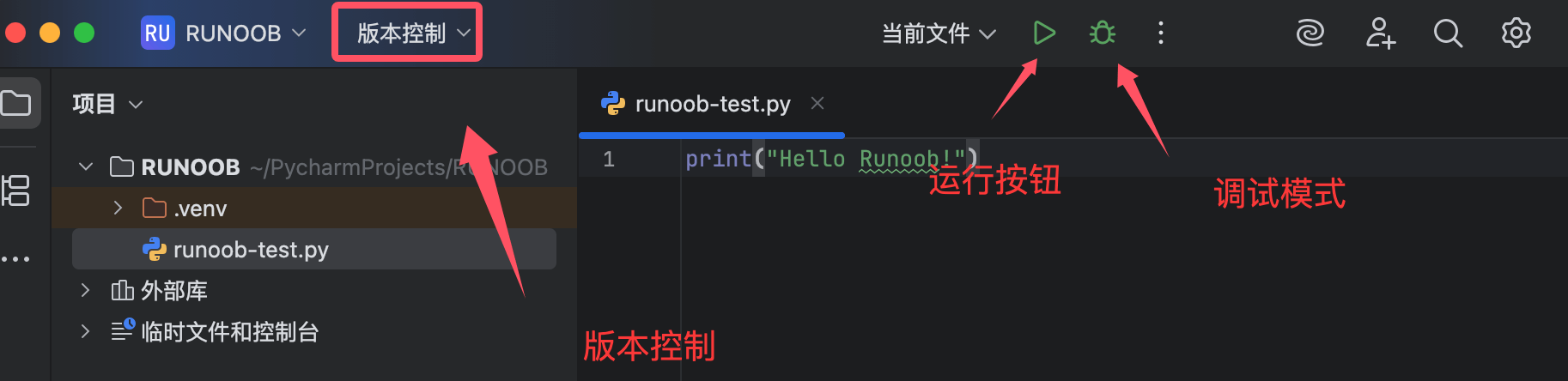

2. Toolbar Icons (Common Functions)

  • Run button: Runs the current project/script

  • Debug button: Starts in debug mode

  • Commit button: Version control commit

  • Update Project: Updates from VCS

  • History: Views local history

  • Settings: Opens the settings window

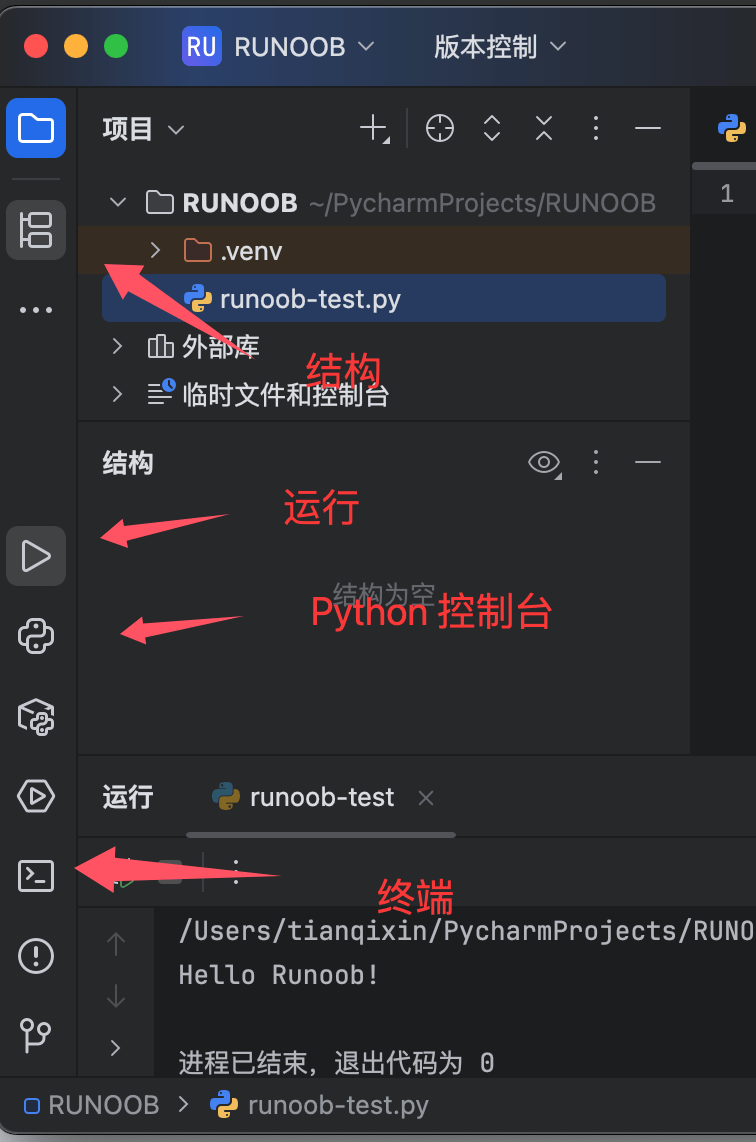

3. Left Tool Window

Project panel：

  • Displays the project directory structure

  • Right-click menu provides file operations

  • Supports file filtering and sorting

Structure panel：

  • Displays the code structure of the current file (classes, methods, etc.)

  • Allows quick navigation to specified elements

Python Console：

  • Interactive Python execution environment

  • Supports variable inspection and code snippet execution

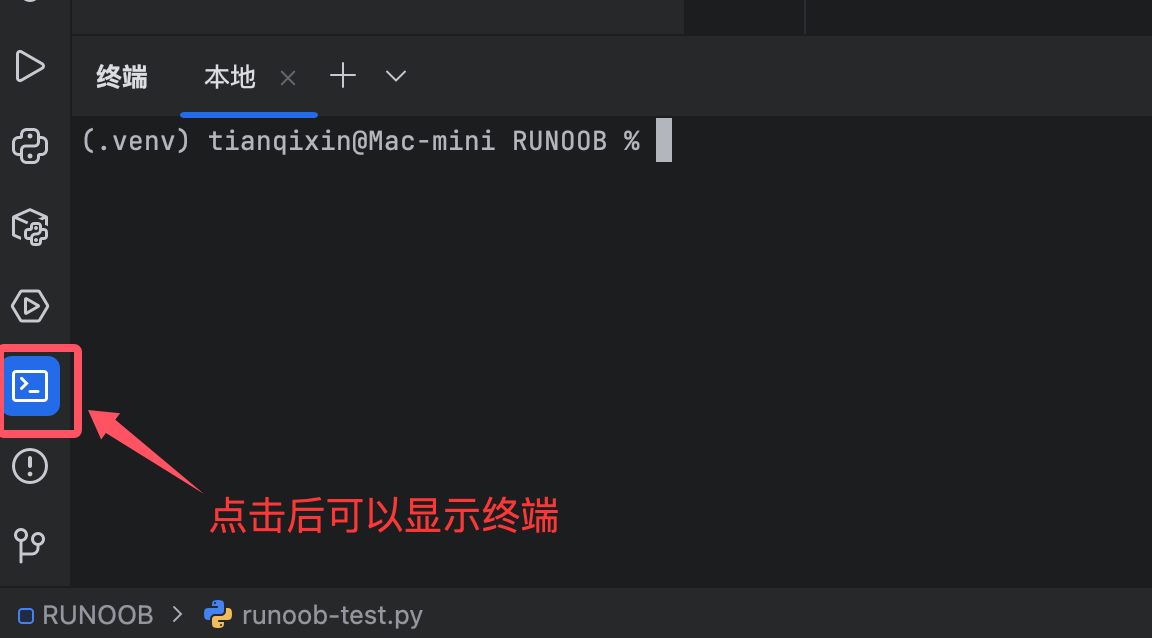

Terminal：

  • System command-line terminal

  • Supports PowerShell/CMD/bash, etc.

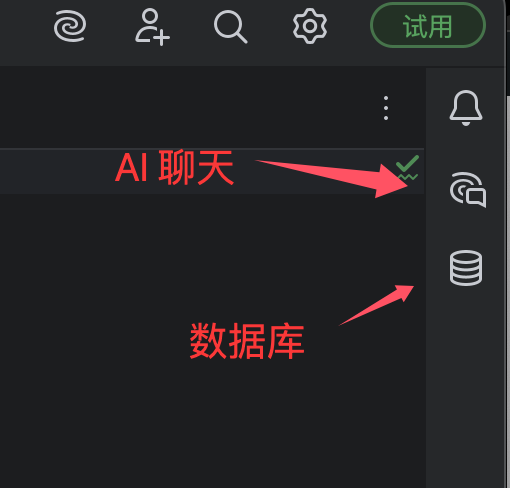

4. Right Tool Window

AI Chat：

  • AI chat window

Database：

  • Database connection management

  • SQL query execution and result viewing

5. Bottom Tool Window

Run：

  • Program output display

  • Debug console

Problems：

  • Summary of code errors and warnings

  • Click to jump to the problematic code

TODO：

  • Collects TODO comments in the code

  • Displayed grouped by module

Version Control：

  • Version control operations such as Git

  • List of changed files

6. Editor Area

  • Tabs: Display opened files, support grouping

  • Code editing area: Main work area, supports:

    • Syntax highlighting

    • Code folding

    • Line number display

    • Error squiggly line hints

  • Right-side scroll bar: Displays code analysis markers (errors/warnings, etc.)

  • Gutter area: Displays breakpoints, bookmarks, etc.

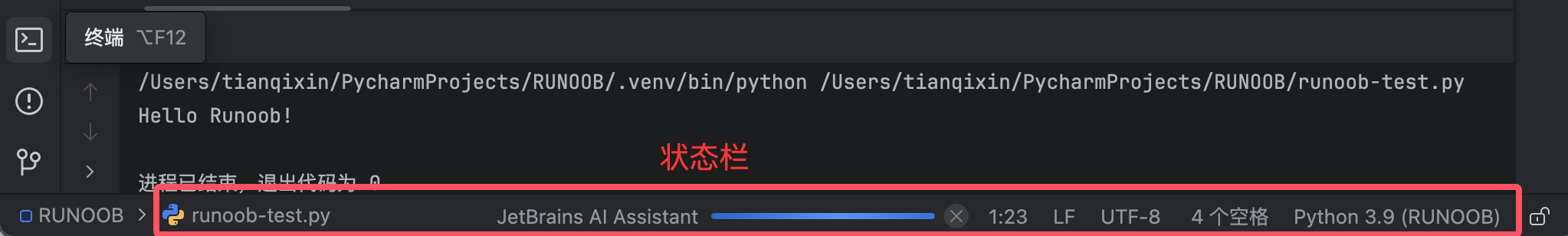

7. Status Bar

  • Interpreter display: Currently used Python interpreter

  • Encoding format: File encoding (e.g., UTF-8)

  • Line endings: LF/CRLF

  • Cursor position: Line:Column indicator

  • Memory indicator: IDE memory usage

III. Interface Customization Tips

Adjusting the layout：

  • Drag the tool window title to dock/float it

  • Right-click the tool window title to set the display position

  • View → Tool Windows controls the display of each panel

Restore default layout：

  • Window → Restore Default Layout

Full screen mode：

  • View → Enter Full Screen

  • Or use the shortcut Ctrl+Shift+F12

Split-screen editing：

  • Right-click the editor tab → Split

  • Supports vertical/horizontal split screen

IV. Special Notes on the Chinese Interface

Terminology comparison：

  • "Refactor" → "Refactor" (Refactor)

  • "Inspect Code" → "Inspect Code" (Inspect Code)

  • "Run Configuration" → "Run Configuration" (Run Configuration)

Chinese input issuesIf the input method does not follow, you can try:

  • File → Settings → Appearance & Behavior → Appearance → Uncheck "Use native input method"

  • Or switch to a different input method

Chinese encoding settings：

  • File → Settings → Editor → File Encodings

  • It is recommended to set to UTF-8

  • You can enable "Transparent conversion" to handle existing files

V. Common View Modes

Focus mode：

  • View → Enter Distraction Free Mode

  • Hides all tool windows to focus on code editing

Presentation mode：

  • View → Enter Presentation Mode

  • Enlarges the code font, suitable for presentations

Full project view：

  • Double-press Shift → Search for "Project View"

  • Maximizes project structure browsing
