Vue3 Directory Structure

In the previous chapter, we used npm to install the project (Vue-cli and Vite). We opened the directory in an IDE (Vscode, Atom, etc.), and the structure is as follows:

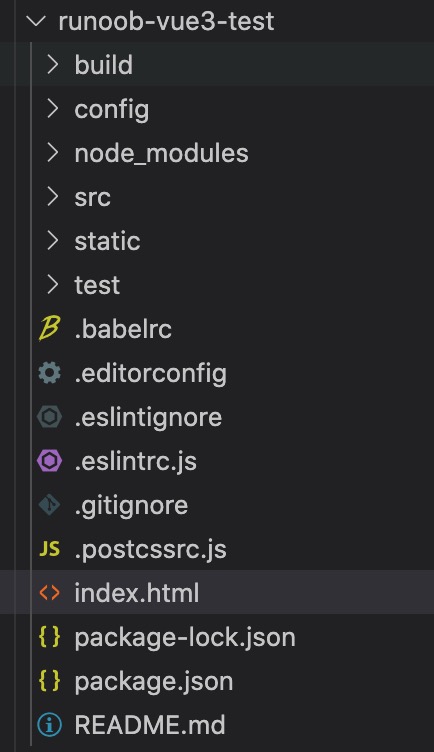

Command-line tool vue-cli (example-vue3-test):

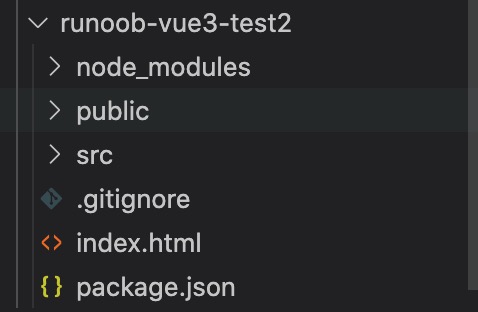

Vite（example-vue3-test2）

A standard Vue 3 project can usually be divided into three layers:

  • Project root directory:Build tools and project configuration
  • public directory:Static resources that are not involved in the build
  • src directory:Almost all business code is here; daily development is basically done in this directory.

Typical Vue project structure:

vue-project/
├── public/                  # 静态资源，直接复制到构建输出目录
│   └── favicon.ico          # 网站图标
├── src/
│   ├── assets/              # 静态资源（如图片、字体、CSS）
│   │   └── logo.png
│   ├── components/          # 可复用的通用组件
│   │   └── CommonHeader.vue
│   ├── composables/         # 可复用的 Composition API 逻辑（可选）
│   │   └── useFetch.js
│   ├── router/              # 路由配置
│   │   └── index.js
│   ├── stores/              # Pinia 状态管理（或 store/ 用于 Vuex）
│   │   └── index.js
│   ├── utils/               # 工具函数（如请求封装、格式化）
│   │   └── request.js
│   ├── views/               # 页面级组件（对应路由页面）
│   │   ├── HomeView.vue
│   │   └── AboutView.vue
│   ├── App.vue              # 根组件
│   └── main.js              # 入口文件（创建 Vue 应用）
├── index.html               # HTML 入口模板
├── vite.config.js           # Vite 配置文件
├── package.json             # 项目依赖与脚本
├── .gitignore               # Git 忽略文件
├── .env                     # 环境变量（开发）
├── .env.production          # 环境变量（生产）
└── README.md                # 项目说明

Directory Explanation

Path Description
public/ Stores static resources that will not be processed by the build tool; they are directly copied to the dist directory, commonly used for favicon, robots.txt, etc.
public/favicon.ico Website icon (favicon)
src/ Main directory for project source code; all development code is placed here
src/assets/ Stores static resources such as images, fonts, and global CSS; they will be processed by Vite (supports import)
src/components/ Stores reusable common components (such as buttons, cards, layout components)
src/composables/ Stores reusable Composition API logic functions (the code reuse approach recommended by Vue 3)
src/router/ Vue Router configuration directory, usually contains index.js to define the route table
src/stores/ Pinia state management directory (officially recommended by Vue 3), stores each store module
src/utils/ Stores utility functions, such as axios wrappers, time formatting, constants, etc.
src/views/ Stores page-level components, usually corresponding one-to-one with routes (route pages)
src/App.vue The root component of the Vue application, containing<router-view>and other entry render points
src/main.js Project entry file, creates the Vue application instance, mounts plugins (router, pinia, etc.) and mounts to #app
index.html HTML template file, containing<div></div>mount point
vite.config.js Vite build tool configuration file; can customize plugins, aliases, proxy, etc.
package.json Project dependencies, script commands (such as dev, build, preview)
.gitignore Git ignore file; usually ignores node_modules, dist, .env, etc.
.env / .env.production Environment variable file, used to configure API addresses, etc. for different environments (Vite variables starting with VITE_)
README.md Project documentation

As the project grows, you may also need to add these folders:

  • src/layouts/: Different page layouts (such as AdminLayout.vue, GuestLayout.vue).
  • src/plugins/: Custom Vue plugins (such as automatic global component registration).
  • src/directives/: Custom directives (such as v-loading).
  • src/types/: Global TypeScript type declarations.
  • tests/ortests/: Unit/E2E tests (Vitest + Vue Test Utils).
  • src/api/: Separate API interface call modules (more granular than utils/request).

Next, we take example-vue3-test2 as an example, open the src/APP.vue file in the directory, and the code is as follows (explanations are in the comments):

src/APP.vue File Code

<!-- Display template -->
<template>
  <img alt="Vue logo" src="./assets/logo.png" />
  <HelloWorld msg="Hello Vue 3.0 + Vite" />
</template>
<!-- Vue code -->
<script>
/* Import the HelloWorld component from src/components/HelloWorld.vue */
import HelloWorld from './components/HelloWorld.vue'

export default {
  name: 'App',
  components: {
    HelloWorld
  }
}
</script>

Next, we can try to modify the initialized project and change src/APP.vue to the following code:

src/APP.vue File Code

<template>
  <img alt="Vue logo" src="./assets/logo.png" />
  <HelloWorld msg="Welcome to Example Tutorial!" />
</template>

<script>
import HelloWorld from './components/HelloWorld.vue'

export default {
  name: 'App',
  components: {
    HelloWorld
  }
}
</script>

Open the pagehttp://localhost:3000/, it usually auto-refreshes after modification, and the display effect is as follows:
