TensorFlow Example - Image Classification Project

Image classification is one of the most fundamental and important tasks in computer vision. This project will use the TensorFlow framework to build a deep learning model that can recognize different categories of images.

What is Image Classification

Image classification is a technique that enables computers to automatically identify the category to which the main object in an image belongs. For example:

  • Recognizing whether a photo contains a cat or a dog
  • Distinguishing between different types of flowers
  • Determining lesion types in medical images

Technology Selection

We will use the following technology stack:

  • TensorFlow: Google's mainstream deep learning framework
  • Keras: TensorFlow's high-level API, simplifies model building
  • Matplotlib: Used for visualizing the training process and results

Environment Setup

Install Required Libraries

pip install tensorflow matplotlib numpy

Verify Installation

import tensorflow as tf
print(f"TensorFlow 版本: {tf.__version__}")

Dataset Preparation

We will use the classic CIFAR-10 dataset, which contains 60,000 32x32 color images in 10 categories.

Load Dataset

Example

from tensorflow.keras.datasets import cifar10

# Load data
(train_images, train_labels), (test_images, test_labels) = cifar10.load_data()

# Class names
class_names = ['airplane', 'automobile', 'bird', 'cat', 'deer',
               'dog', 'frog', 'horse', 'ship', 'truck']

3.2 Data Preprocessing

Example

# Normalize pixel values to 0-1 range
train_images = train_images / 255.0
test_images = test_images / 255.0

# View data shape
print("Training set image shape:", train_images.shape)
print("Training set label shape:", train_labels.shape)

4. Build the Model

4.1 Model Architecture

We will build a Convolutional Neural Network (CNN), which is a classic architecture for image tasks.

Example

from tensorflow.keras import layers, models

model = models.Sequential([
    # Convolutional layer 1
    layers.Conv2D(32, (3, 3), activation='relu', input_shape=(32, 32, 3)),
    layers.MaxPooling2D((2, 2)),

    # Convolutional layer 2
    layers.Conv2D(64, (3, 3), activation='relu'),
    layers.MaxPooling2D((2, 2)),

    # Convolutional layer 3
    layers.Conv2D(64, (3, 3), activation='relu'),

    # Fully connected layer
    layers.Flatten(),
    layers.Dense(64, activation='relu'),
    layers.Dense(10)  # Output layer, 10 classes
])

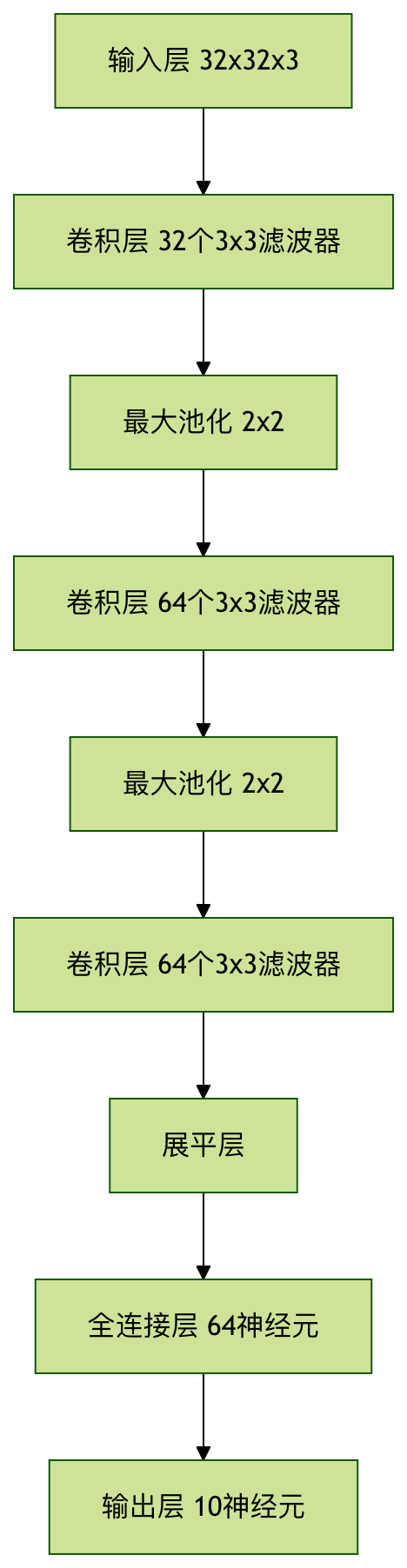

Model Structure Visualization

Train the Model

Compile the Model

Example

model.compile(optimizer='adam',
              loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
              metrics=['accuracy'])

Start Training

Example

history = model.fit(train_images, train_labels, epochs=10,
                    validation_data=(test_images, test_labels))

Training Process Visualization

Example

import matplotlib.pyplot as plt

plt.plot(history.history['accuracy'], label='Training accuracy')
plt.plot(history.history['val_accuracy'], label='Validation accuracy')
plt.xlabel('Epoch')
plt.ylabel('Accuracy')
plt.ylim([0, 1])
plt.legend(loc='lower right')
plt.show()

Model Evaluation and Prediction

Evaluate Test Set Performance

Example

test_loss, test_acc = model.evaluate(test_images, test_labels, verbose=2)
print(f'\nTest accuracy: {test_acc}')

Make Predictions

Example

import numpy as np

# Add softmax layer to make output probabilities
probability_model = tf.keras.Sequential([model, layers.Softmax()])

# Make predictions on the first 5 images of the test set
predictions = probability_model.predict(test_images[:5])

# Display prediction results
for i in range(5):
    predicted_label = np.argmax(predictions[i])
    true_label = test_labels[i][0]
    print(f"Prediction: {class_names[predicted_label]} | Actual: {class_names[true_label]}")

Project Expansion Suggestions

Methods to Improve Model Performance

  1. Increase network depth (more convolutional layers)
  2. Use data augmentation techniques
  3. Try different optimizers and learning rates
  4. Add batch normalization layers

Practical Application Directions

  • Medical image analysis
  • Object recognition in autonomous driving
  • Industrial quality inspection systems
  • Security surveillance systems

8. Frequently Asked Questions

Q1: Why choose CNN instead of a regular neural network?

A: With local connections and weight sharing, CNN can better capture spatial features of images and has fewer parameters.

Q2: How to choose the appropriate number of epochs?

A: Monitor the validation accuracy and stop training when it stops improving to avoid overfitting.

Q3: What to do if you encounter an out-of-memory error?

A: You can reduce the batch size or use smaller image dimensions.
