Pi Agent Integration with DeepSeek

DeepSeek provides an OpenAI-compatible API, so you can reuse Pi's existing OpenAI adapter layer without developing a separate adapter for DeepSeek.

The core work for integration is only two things: declare the provider and model parameters in models.json, and provide the API Key via environment variables.

The overall architecture is shown in the following diagram:

Pi 接入 DeepSeek 架构图

The so-called "OpenAI-compatible API" means the provider's HTTP interface protocol is consistent with OpenAI. As long as the protocol is compatible, any tool that supports OpenAI can call it directly; DeepSeek belongs to this category.

Install Pi

Pi depends on the Node.js runtime. Before installing, please make sure Node.js is ready.

Install Node.js

Download the installer for your system from the official Node.js website and install it with the default options.

Install Pi CLI

Install globally via npm in the terminal:

npm install -g --ignore-scripts @earendil-works/pi-coding-agent

Linux and macOS users can also use the official installation script to install with one command:

curl -fsSL https://pi.dev/install.sh | sh

Verify Installation

Run the following command. If the version number prints normally, the installation was successful:

pi --version

Output similar to:

0.83.0

Configure DeepSeek Provider

Pi defines custom model providers through models.json. This section integrates DeepSeek as an OpenAI-compatible API.

Configuration File Path

Different operating systems have different configuration paths. Please follow the one for your system:

Operating System	Configuration File Path
Linux / macOS	~/.pi/agent/models.json
Windows	%USERPROFILE%\.pi\agent\models.json

Write models.json

Write the following content into the configuration file:

{
  "providers": {
    "deepseek": {
      "baseUrl": "https://api.deepseek.com",
      "api": "openai-completions",
      "apiKey": "$DEEPSEEK_API_KEY",
      "models": [
        {
          "id": "deepseek-v4-pro",
          "name": "DeepSeek V4 Pro",
          "contextWindow": 1000000,
          "maxTokens": 384000,
          "input": ["text"],
          "reasoning": true,
          "cost": {
            "input": 1.74,
            "output": 3.48,
            "cacheRead": 0.145,
            "cacheWrite": 0
          },
          "compat": {
            "requiresReasoningContentOnAssistantMessages": true,
            "thinkingFormat": "deepseek",
            "reasoningEffortMap": {
              "minimal": "high",
              "low": "high",
              "medium": "high",
              "high": "high",
              "xhigh": "max"
            }
          }
        },
        {
          "id": "deepseek-v4-flash",
          "name": "DeepSeek V4 Flash",
          "contextWindow": 1000000,
          "maxTokens": 384000,
          "input": ["text"],
          "reasoning": true,
          "cost": {
            "input": 0.14,
            "output": 0.28,
            "cacheRead": 0.028,
            "cacheWrite": 0
          },
          "compat": {
            "requiresReasoningContentOnAssistantMessages": true,
            "thinkingFormat": "deepseek",
            "reasoningEffortMap": {
              "minimal": "high",
              "low": "high",
              "medium": "high",
              "high": "high",
              "xhigh": "max"
            }
          }
        }
      ]
    }
  }
}

Configuration Item Explanation

The following explains the main fields used in models.json one by one:

Field	Type	Required?	Description	Default Value
baseUrl	string	Required	The OpenAI-compatible API endpoint for DeepSeek	https://api.deepseek.com
api	string	Required	Integration protocol; declares the use of the OpenAI Completions-compatible protocol	openai-completions
apiKey	string	Required	Reads the key from an environment variable with the same name; no need to write the key in plain text in the configuration file	$DEEPSEEK_API_KEY
contextWindow	number	Required	Context window size (tokens)	1000000
maxTokens	number	Required	Maximum output length per request (tokens)	384000
reasoning	boolean	Optional	Declares that the model supports chain-of-thought (reasoning) capability	true
cost	object	Optional	Records unit prices for input/output/cache hits, used by the Pi interface to estimate costs	—
requiresReasoning ContentOnAssistantMessages	boolean	Recommended	In multi-turn conversations, assistant messages need to keep the reasoning_content field; otherwise compatibility issues may occur	true
thinkingFormat	string	Recommended	Parses and displays the reasoning process according to DeepSeek's specific thinking content format	deepseek
reasoningEffortMap	object	Recommended	Maps Pi's reasoning effort levels to the levels actually supported by DeepSeek	—

reasoningEffortMap maps Pi's five reasoning levels (minimal / low / medium / high / xhigh) to the levels supported by DeepSeek. Except for xhigh mapping to max, all the others converge to high.

Model Selection

The configuration declares two DeepSeek models. The main differences are as follows:

Model	Context Window	Max Output	Input Unit Price	Output Unit Price	Cache Hit Unit Price	Applicable Scenarios
deepseek-v4-pro	1,000,000	384,000	1.74	3.48	0.145	Stronger reasoning capability, suitable for complex tasks
deepseek-v4-flash	1,000,000	384,000	0.14	0.28	0.028	Faster response, lower cost

Unit prices are in US dollars per million tokens.

Obtain and Set API Key

First apply for an API Key on the DeepSeek open platform:https://platform.deepseek.com/api_keys。

For Linux / macOS, export the environment variable in the terminal:

export DEEPSEEK_API_KEY="你的 DeepSeek API Key"

For Windows (PowerShell), set it as follows:

$env:DEEPSEEK_API_KEY="你的 DeepSeek API Key"

It is recommended to write the export command into the shell configuration (such as ~/.bashrc, ~/.zshrc, or PowerShell Profile) to avoid having to set it again every time you open a new terminal.

Please replace "your DeepSeek API Key" in the example with your real key. The API Key is sensitive information; please keep it safe and never commit it to a repository.

Run and Test

Once configured, you can start Pi and switch to the DeepSeek model.

Start Pi

Enter the project directory:

cd ~/example-test/

Directly run the pi command:

pi

Switch to DeepSeek Model

After entering the interactive interface, switch by following these steps:

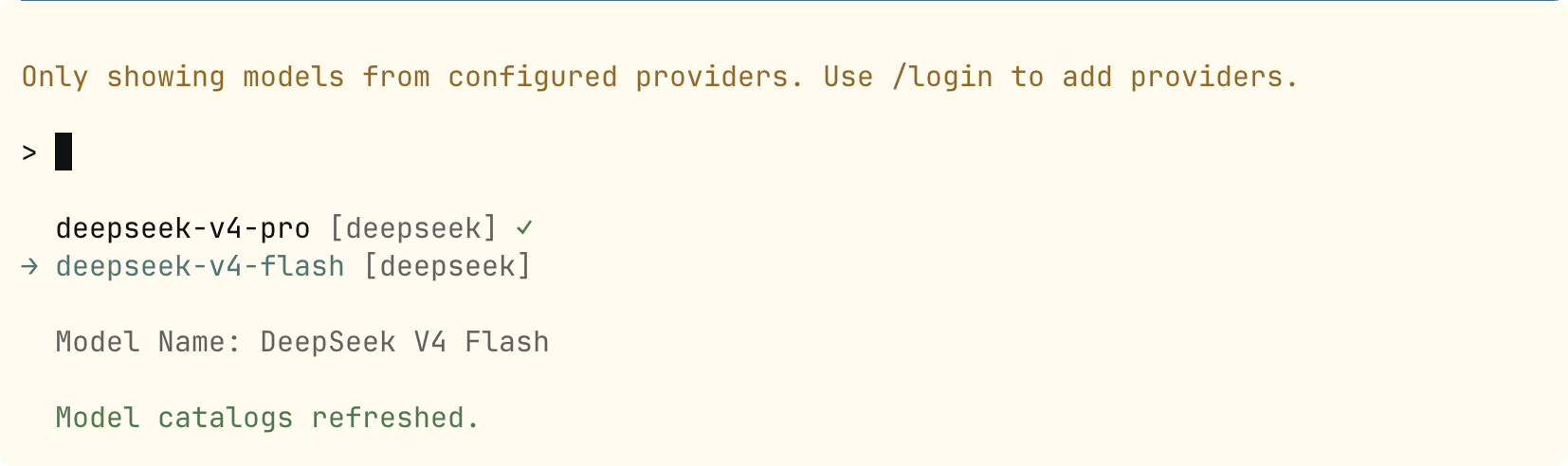

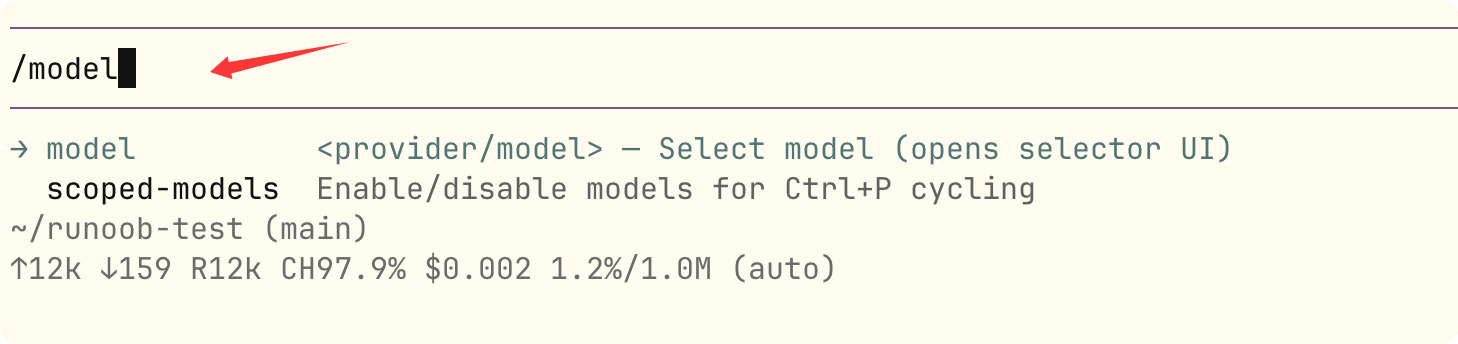

Input/modelOpen the model selector.
Select the deepseek provider, then choose DeepSeek-V4-Pro or DeepSeek-V4-Flash.

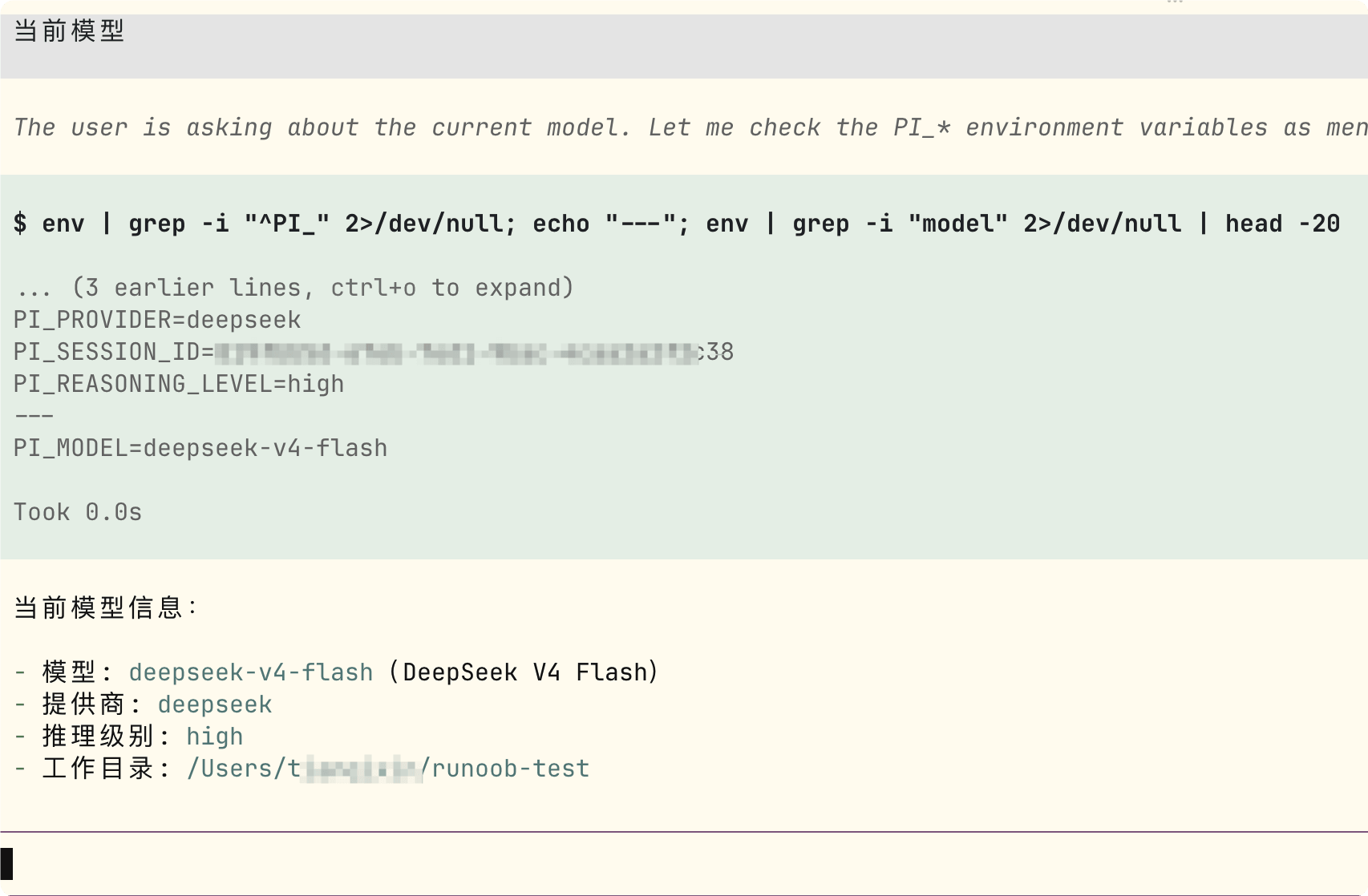

Next, query the current model.

After switching, you can start coding directly in this minimalist terminal framework.

Suggested Test Steps

Verify whether the integration is complete and usable by going through the checklist below:

Test Item	Operation Method	Expected Result
Authentication and Connectivity	Send a sentence, for example, "Hello, please introduce the example learning platform"	Receive a normal reply with no 401 / 403 authentication errors, confirming that apiKey and baseUrl are configured correctly
Reasoning Capability	Ask a question that requires multi-step reasoning, such as asking it to analyze first and then provide a solution	Output a visible thinking process, indicating that thinkingFormat and reasoning are in effect
Multi-turn Tool Calls	Have Pi continuously call tools to read files, run commands, modify code, and verify results	Multi-turn conversation stays stable without errors caused by missing reasoning_content
Reasoning Effort Switching	In /model, switch from medium to xhigh	Behavior conforms to the reasoningEffortMap mapping; xhigh corresponds to DeepSeek's max
Cost Calculation	After running a few real tasks, check the cost statistics	The interface statistics match the unit prices set in the cost field

Among these, "Multi-turn Tool Calls" is the key scenario for verifying whether the requiresReasoningContentOnAssistantMessages configuration is correct.

Common Troubleshooting

If you encounter issues during integration, use the following checklist to quickly locate them.

Can't See DeepSeek in Model Selector

Check whether the models.json path is correct. The paths for Windows and Linux / macOS are different.

Also confirm that the JSON format has no syntax errors, such as trailing commas or unclosed quotes.

Authentication Failed

Confirm that the DEEPSEEK_API_KEY environment variable has been set correctly.

Note: The terminal session where you run the pi command must be the same session where you set the environment variable.

Multi-turn Tool Calls Report Errors

First check whether requiresReasoningContentOnAssistantMessages and thinkingFormat have been fully configured as described above.

Need More Customization Capabilities

You can refer toPi official models documentation, for more comprehensive configuration options.
